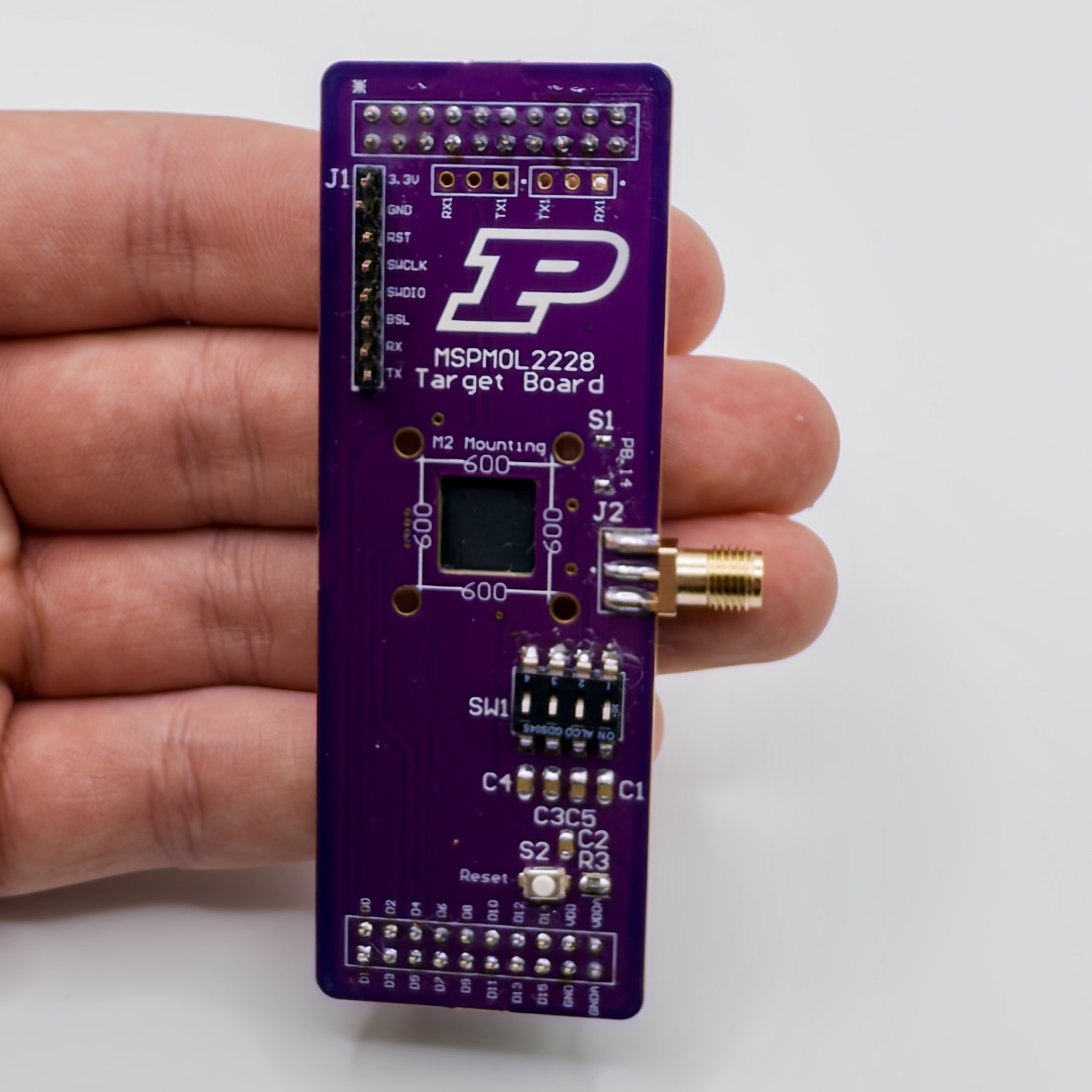

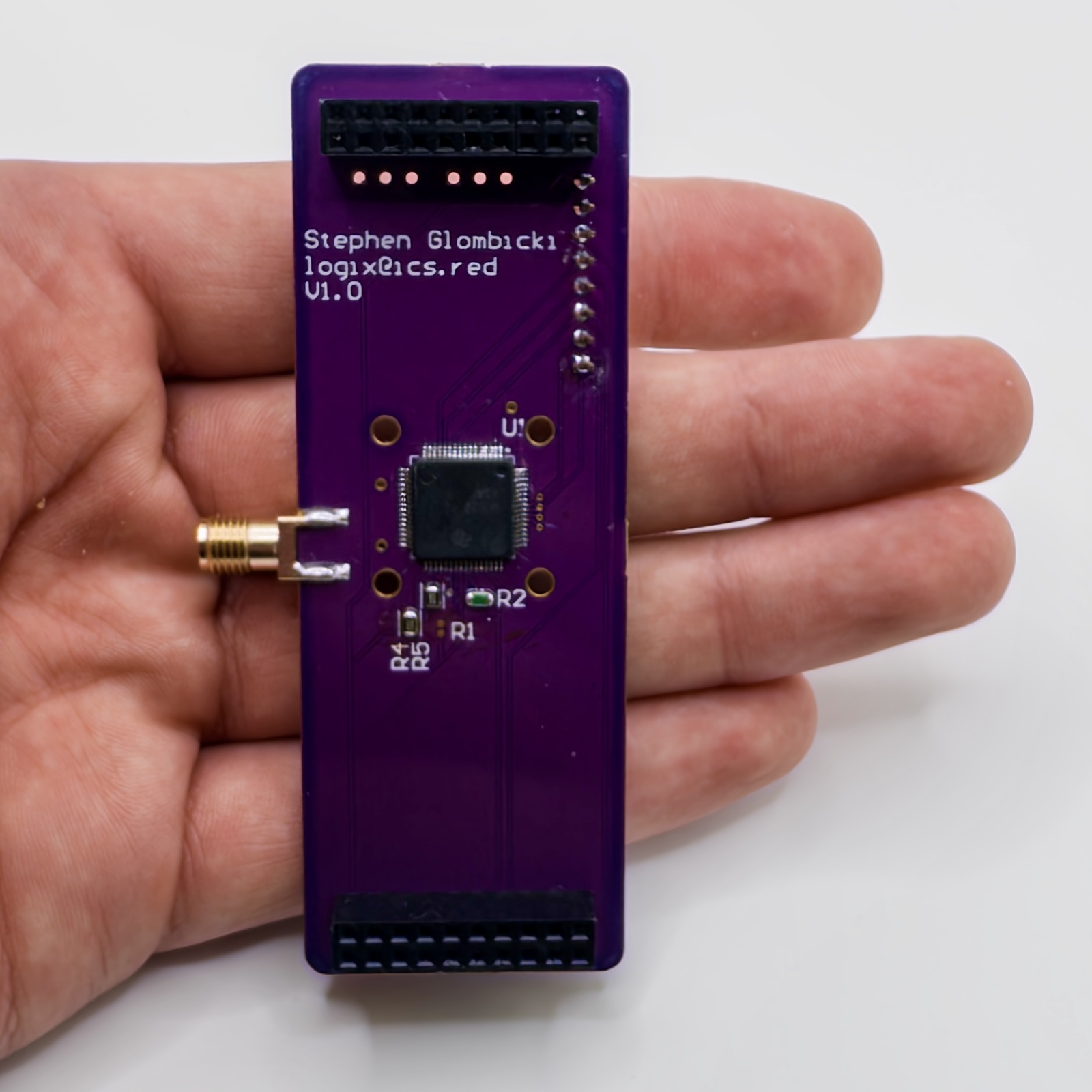

Target board for the MSPM0L2228 from TI with the various form factor. All boards support variable vcore capatiance via dip switches allowing you to select from 0-400nF of capacitance to allow for voltage glitching. Each boards has the backside of the chip removed allowing for laser fault injection (LFI) or Body Biasing Injection (BBI).
- UFO Board: Is a standard board supporting differential power analysis.
- Edge Connector: Same as UFO board just in different form factor
- Scaffold: Chip upside down for LFI or BBI, has UART0 & UART1 exposed to FPGA

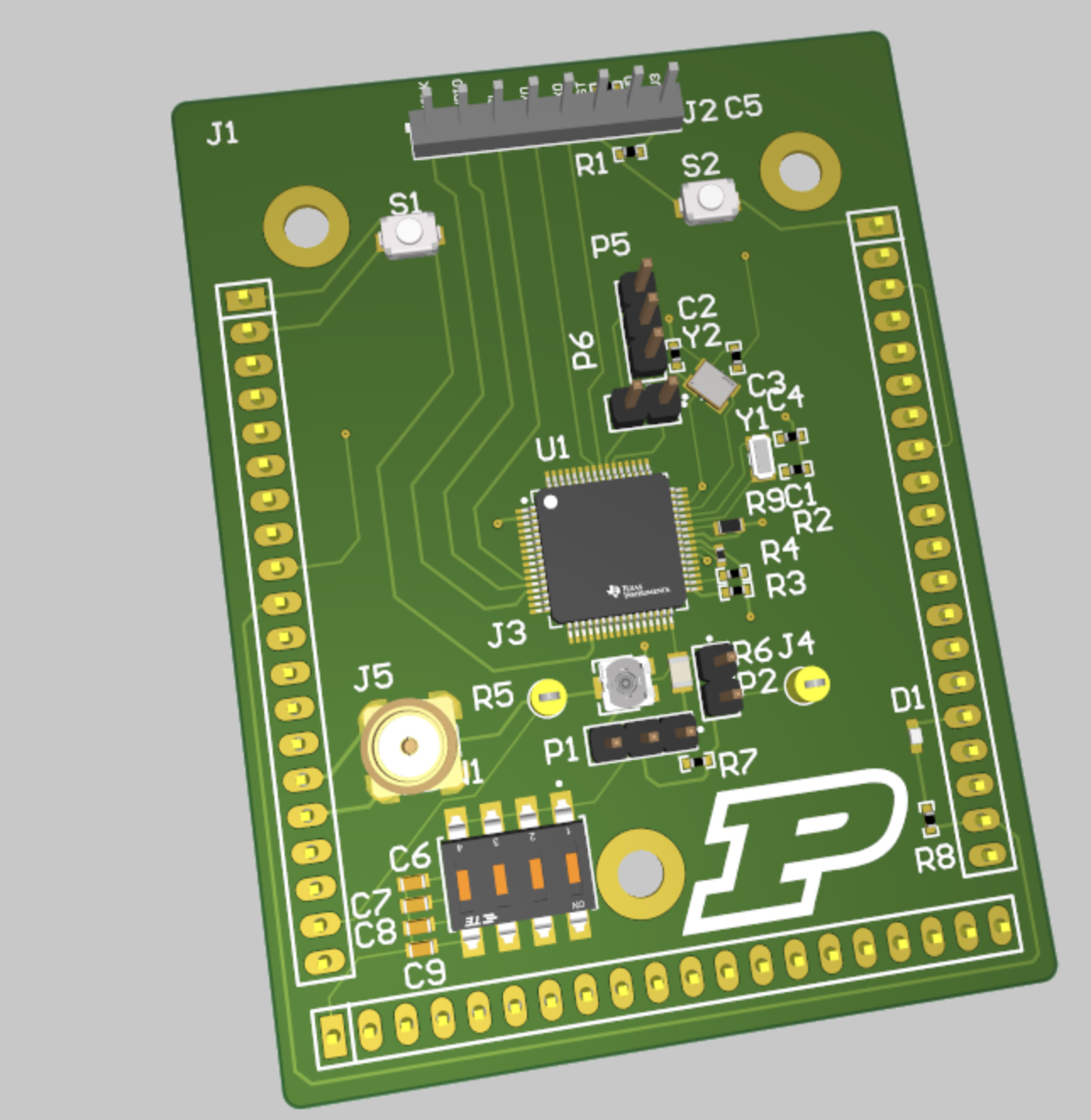

- Dev Board: Supports some faulting in a square development package that can be easily mounted or have rubber feet.
